OptiMA® Atlas® Aluminum Marker Trays with Square Corners

5 Reviews

See 1 Question & 1 Answer

Atlas Square Corner Aluminum Marker Tray

Description
Size Chart
Specifications
How to Order

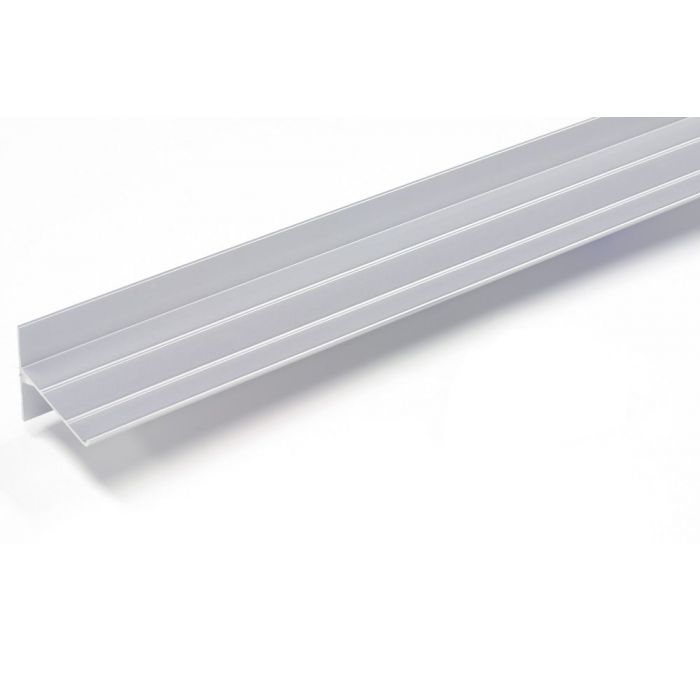

Atlas® aluminum marker trays have a blade style shelf or marker ledge that is 2 ¼" inches deep. The back of the tray is 2 1/8" wide and the ends of the ledge are cut square. NOTE: This product does not include installation hardware. Please see accessory products below for the installation hardware kit!

Special Volume Discounts:

Order 6 Units of the Same Size and get an automatic 10% Discount on those units
Order 12 Units of the Same Size and get an automatic 15% Discount on those units
Order 24 or more Units of the Same Size and get an automatic 20% Discount on those units
Units must be the same size and shipping to the same location to get the discount
Contact customer service if you need assistance

You can order full length trays up to 8' in length or two-piece trays up to 16' in length and they can all ship by UPS. Because the ends of the trays are square cut you can butt them up tightly against each other to create marker trays almost as long as you like without the added expense of shipping by truck. Altas® marker trays and ledges are carefully packed in heavy duty shipping tubes.

Extra-long Atlas® marker trays are also available as a single length up to 12' with either square cut corners or angle cut corners. These extra long aluminum marker trays ship by truck.

Atlas® aluminum marker trays are all made in the U.S.A. Note: Cut tolerances on all marker trays is +/- ¼" Atlas® marker trays are an OptiMA exclusive and Atlas® is a trademark of OptiMA Inc.

This item ships from Shrewsbury, MA and is ineligible for our Free Freight Program.

Model Number	Choose Size	Shipping Method	Shipping Weight	Price
GR-AtlasSC-01	1' Long Square Corner Tray	UPS	2 lbs	$19.95
GR-AtlasSC-18	18" Long Square Corner Tray	UPS	1.25 lbs	$24.95
GR-AtlasSC-02	2' Long Square Corner Tray	UPS	3 lbs	$26.95
GR-AtlasSC-03	3' Long Square Corner Tray	UPS	4 lbs	$35.95
GR-AtlasSC-04	4' Long Square Corner Tray	UPS	9 lbs	$47.95
GR-AtlasSC-05	5' Long Square Corner Tray	UPS	12 lbs	$59.95
GR-AtlasSC-06	6' Long Square Corner Tray	UPS	14 lbs	$71.95
GR-AtlasSC-07	7' Long Square Corner Tray	UPS	16 lbs	$83.95
GR-AtlasSC-08	8' Long Square Corner Tray	Truck	18 lbs	$95.95
GR-AtlasSC-10-2	10' Square Corner 2 Piece	UPS	12 lbs	$124.95
GR-AtlasSC-12-2	12' Square Corner 2 Piece	UPS	14 lbs	$148.95
GR-AtlasSC-14-2	14' Square Corner 2 Piece	UPS	16 lbs	$172.95
GR-AtlasSC-16-2	16' Square Corner 2 Piece	Truck	18 lbs	$196.95

Features:

Heavy Gauge Aluminum
Blade style marker tray with 90 degree square corner
Back Panel is 2 1/8" High
Blade is 1/8" thick and 2 1/4" deep
7/8" of the Back Panel is above the blade
1 1/8" of the Back Panel is below the blade
Lower back panel can be drilled through for permanent installation with wall anchors and wall screws.
Installation hardware is Not Included
Units up to 8' in length ship by UPS
UPS Dimensional Weights May Apply
Longer 2-Piece units available that ship by UPS.
Single section 10' and 12' units available. They ship by truck.
Cut tolerance of +/- ¼"
Custom lengths available through customer service
Lead-time is 2-5 business days shipping from Shrewsbury, MA
Atlas® is a registered trade mark of OptiMA Inc.
Made in the U.S.A.
Ships from Shrewsbury, MA
Product is ineligible for our Free Shipping Program

1 Question & 1 Answer

Ask a Question

Jeanne

from Severna Park, MD asked:

January 13, 2021

How does it attach to the wall?

1 Answer

Atlas marker trays are attached to the wall by first locating the studs in the wall. Next you drill through the frame. Attach the frame to wall by screwing through the drilled out holes and into the wall stud. The number of anchors depends upon the size of the tray being installed. We recommend at least one screw every 16" for the best results.

Submitted by: Product Specialist on February 8, 2021

Answer

Write a Review

Review Summary

4.4

5 Reviews

60% (3)

20% (1)

0% (0)

100% Recommend this product (5 of 5 responses)

By chris

San Diego

Terrific product!

April 29, 2023

Great pencil tray for a great price. Holds all my most-used pencils and tools right where I can reach them easily - since I use a very steep drafting board, and cannot lay my pencils on that surface. Also, I can brush all my erasure crumbs off my work, down into the tray, instead of having them fall to the floor - I can easily collect them from the tray at the end of the day with a brush or hand-vac. This tray is such a good addition to my drafting/drawing board.

Merchant Response:Thank you for taking the time to leave such a positive review! We're thrilled to hear that our marker tray is a great addition to your drafting board and has made it easier for you to keep your pencils and tools organized and accessible. We take pride in providing high-quality products, and we're glad that our marker tray has been a valuable tool for you. Thank you again for your review!

Good price. Nice finish with smooth rounded corners. Easy to attach with mastic or mechanical facteners. Wide enough for lots of pencils, but not wide enough to get in the way.

By Anonymous

Virginia

Good product!

October 3, 2021

Very expensive shipping!

By Guy

Ohio

Exactly what I wanted

October 16, 2018

The marker/eraser tray is deep enough to allow the erasers to seat completely, with no overhang (a real plus). It is a sturdy extrusion ( no folds), and will last for many years

By james s.

Good quality product

October 17, 2015

Good as product that is part of a complete whiteboard

By Brian G.

Nice tray

February 19, 2015

Tray is quite nice, clean finish, no sharp edges, came packaged very well with no damage. Thought it would have holes pre-drilled for mounting to wall, but had to drill them myself.

Merchant Response:Thank you for your order and your kind words. We made the decision not to pre-drill holes so that more options are left to the customer. Our customers use these trays in many ways and mount them with a variety of hardware and even double-sided tape. Aluminum does tend to be a very easy metal to drill into so we hope you didn\'t have too much difficulty.
