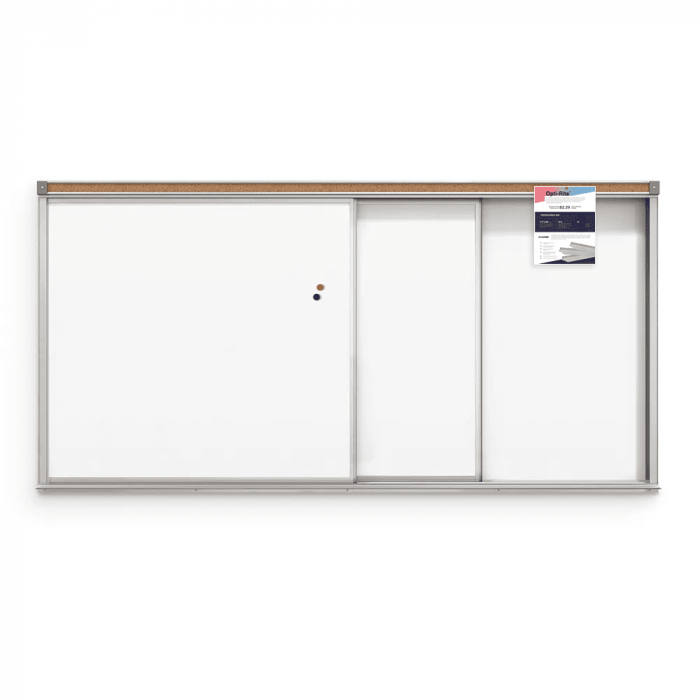

Horizontal Sliding Dry Erase Boards

SKU: WP-HSW
Price: $0.00
Quantity:
Click to enlarge
Share this:

Horizontal Sliding Dry Erase Boards. Now you can double or triple your writing area using our horizontal sliding dry erase boards. Create the perfect whiteboard for your space limitations but having multiple panels that slide over each other, one in front of the other.

You can create horizontal sliding boards with chalkboard writing surfaces, dry erase writing surfaces or colored tackboard surfaces. We allow you the opportunity to mix and match so that your horizontal sliding board is exactly what you need it to be.

Use the same amount of wall space but double or triple your writing space using horizontal sliding dry erase boards, chalkboards and corkboards.

Two track units are on 1 1/2" x 3" deep outer frames and the tray extends an additional 2 1/2" making a total depth of 5 1/2".

Three track units are on 1 1/2" x 5" deep outer frames and the tray extends an additional 2 1/2" making a total depth of 7 1/2".

Panels slide easily on nylon rollers mounted at the top of the panel and nylon glides at the bottom edge.

Each horizontal slider ships standard with a 2" factory mounted map rails and each unit has a full-length 2 1/2" deep blade chalk/marker tray.

The full length back panel is laminated onto 7/16" particle board and the sliding panels are mounted onto 1/2" fiberboard with a .015 aluminum backing sheet that keeps panels rigid and flat.

Custom order open back units used to cover storage areas or electronic copyboards. Call for Details.

Two track units
H x W Model # # of Sliding Panels Panel Size*
4' x 8' HSW-48-22 2 42" x 48"
4' x 10' HSW-410-22 2 42" x 60"
4' x 12' HSW-412-22 2 42" x 72"
4' x 14' HSW-414-24 4 42" x 42"
4' x 16' HSW-416-24 4 42" x 48"
4' x 18' HSW-418-24 4 42" x 54"
4' x 20' HSW-420-24 4 42" x 60"
4' x 24' HSW-424-24 4 42" x 72"

Three track units
H x W Model # # of Sliding Panels Panel Size*
4' x 8' HSW-48-33 3 42" x 48"
4' x 10' HSW-410-33 3 42" x 60"
4' x 12' HSW-412-33 3 42" x 72"
4' x 14' HSW-414-36 6 42" x 42"
4' x 16' HSW-416-36 6 42" x 48"
4' x 18' HSW-418-36 6 42" x 54"
4' x 20' HSW-420-36 6 42" x 60"
4' x 24' HSW-424-36 6 42" x 72"

Features & Notes
  • Our horizontal sliding boards have a full length back panel.
  • All writing surfaces are porcelain steel and magnetic receptive.
  • Panels can be whiteboard, green or black chalkboard or color forbo cork.
  • Follow this link to see the colored tack surface colors available.
  • Includes 2" factory mounted map rail.
  • Full length 2 1/2" deep blade chalk/marker tray.
  • Select either 2 or 3 tracks for additional sliding panels.
  • Call for lead-times.
  • *Panel sizes are approximate.

Sliding panels are shipped separately from the unit in crates that can weigh up to 150-175 pounds. Back panels are shipped in a separate crate that can weigh upwards to 300-350 pounds.

Please be aware of size and weight factors when ordering and planning receipt of these units; Lift gate trucks are no assistance on boards over 10' or 12' in length. In addition, horizontal sliders are custom made to your specifications and they are Not Returnable.
